Medi-Luer ISO 80369-7 (ISO 594) Screw Thread Gages



Medi-Luer ISO 80369-7 (ISO 594) Fitment Screw Thread Gages

ISO 80369-7:2016 Foreword:
ISO 80369-7 cancels and replaces the first edition ISO 594-1:1986 and the second edition of ISO 594-2:1998, clauses, subclauses, tables, figures, and annexes of which have been consolidated and technically revised.



ISO 80369-7
B.3 and B.4
Thread Plug Gages

Call or Email us for Quote



GO/NOGO Style Thread Plug Gage for the internal Thread on the male Luer Connector
Video & Pics
The above photo is just representative; not actual product.

ISO 80369-7 Fig B.3 and B.4
GO/NOGO Chrome Fitment Work Plug Gages

For fitment testing of the ISO 80369-7 Figures B.3 and B.4 female screw thread in the collar surrounding the male conical fittings.
Medi-Luer # ML18
More information.

Calibration:
The manufacturer's ISO 17025 (A2LA) Calibration Certificate is included.

NOTES:
1. This GO/NOGO Chrome Fitment Work Plug Gage will test ISO 80369-7 Figure B.3 and B.4.
2. Both the GO and the NOGO gage members have C'Bore to clear the ISO 80369-7 male Luer cone.
3. ISO 80369-7 does not prescribe or define these gages. ISO 80369-7 does not suggests using any gages like this. Using these gages is not a requirement of ISO 80369-7.
4. Usually gages and reference fittings for ISO 80369-7 are made of Hardened Stainless Steel, but these gages are made of Hardened Tool Steel and all-over coated with Chrome to inhibit rust. This gage should not be sterilized.



ISO 594/2
Thread Plug Gages

Call or Email us for Quote



GO/NOGO Style Thread Plug Gage for the internal Thread on the male Luer Connector
Video & Pics
The above photo is just representative; not actual product.

ISO 594/2 GO/NOGO Chrome Fitment Work Plug Gages
For fitment testing of the ISO 594/2 female screw thread in the collar surrounding the male conical fittings.
Medi-Luer # ML11
More Information.

Calibration:
The manufacturer's ISO 17025 (A2LA) Calibration Certificate is included.

NOTES:
1. Both the GO and the NOGO gage members have C'Bore to clear the ISO 594/2 Luer cone.
2. ISO 594/2 does not prescribe or define this gage and does not suggest using any gage like this. Using this gage is not a requirement of ISO 594/2.
3. Usually gages and reference fittings for ISO 594 are made of Hardened Stainless Steel, but this gage is made of Hardened Tool Steel and all-over coated with Chrome to inhibit rust. This gage should not be sterilized.


ISO 80369-7 B.5
Thread Ring Gages

Call or Email us for Quote

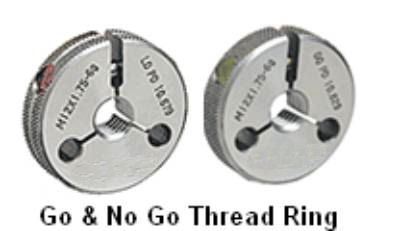

GO/NOGO Style Thread Ring Gages for the external thread of Female Luer Connector
Video & Pics
The above photo is just representative; not actual product.

ISO 80369-7 Fig B.5 GO/NOGO Chrome Fitment Ring Gages
For fitment testing of the ISO 80369-7 Figure B.5 male screw thread located on the female conical fitting.
Medi-Luer # ML19 (and ML20)
More information.

Calibration:
The manufacturer's ISO 17025 (A2LA) Calibration Certificate is included.

NOTES:
1. These GO/NOGO Chrome Fitment Ring Gages will test ISO 80369-7 Figure B.5.
2. ISO 80369-7 does not prescribe or define these gages. ISO 80369-7 does not suggests using any gages like this. Using these gages is not a requirement of ISO 80369-7.
3. Usually gages and reference fittings for ISO 80369-7 are made of Hardened Stainless Steel, but these gages are made of Hardened Tool Steel and all-over coated with Chrome to inhibit rust. This gage should not be sterilized.
4. These ML19 GO/NOGO Fitment Ring Gages are supplied with the matching ML20 Master Plug Gages. One set of Master Plug Gages can accommodate many sets of Fitment Ring Gages.


ISO 80369-7 B.6
Thread Ring Gages

Call or Email us for Quote



GO/NOGO Style Thread Ring Gages for the external thread of Female Luer Connector
Video & Pics
The above photo is just representative; not actual product.

ISO 80369-7 Fig B.6 GO/NOGO Chrome Fitment Ring Gages
For fitment testing of the ISO 80369-7 Figure B.6 male screw tabs located on the female conical fitting.
Medi-Luer # ML21 (and ML22)
More information.

Calibration:
The manufacturer's ISO 17025 (A2LA) Calibration Certificate is included.

NOTES:
1. These GO/NOGO Chrome Fitment Ring Gages will test ISO 80369-7 Figure B.6.
2. ISO 80369-7 does not prescribe or define these gages. ISO 80369-7 does not suggests using any gages like this. Using these gages is not a requirement of ISO 80369-7.
3. Usually gages and reference fittings for ISO 80369-7 are made of Hardened Stainless Steel, but these gages are made of Hardened Tool Steel and all-over coated with Chrome to inhibit rust. This gage should not be sterilized.
4. These ML21 GO/NOGO Fitment Ring Gages are supplied with the matching ML22 Master Plug Gages. One set of Master Plug Gages can accommodate many sets of Fitment Ring Gages.


ISO 80369-7 B.7
Thread Ring Gages

Call or Email us for Quote



GO/NOGO Style Thread Ring Gages for the external thread of Female Luer Connector
Video & Pics
The above photo is just representative; not actual product.

ISO 80369-7 Fig B.7 GO/NOGO Chrome Fitment Ring Gages
For fitment testing of the ISO 80369-7 Figure B.7 male screw tabs located on the female conical fitting.
Medi-Luer # ML23 (and ML24)
More information.

Calibration:
The manufacturer's ISO 17025 (A2LA) Calibration Certificate is included.

NOTES:
1. These GO/NOGO Chrome Fitment Ring Gages will test ISO 80369-7 Figure B.7.
2. ISO 80369-7 does not prescribe or define these gages. ISO 80369-7 does not suggests using any gages like this. Using these gages is not a requirement of ISO 80369-7.
3. Usually gages and reference fittings for ISO 80369-7 are made of Hardened Stainless Steel, but these gages are made of Hardened Tool Steel and all-over coated with Chrome to inhibit rust. This gage should not be sterilized.
4. These ML23 GO/NOGO Fitment Ring Gages are supplied with the matching ML24 Master Plug Gages. One set of Master Plug Gages can accommodate many sets of Fitment Ring Gages.


ISO 80369-7 B.8
Thread Ring Gages

Call or Email us for Quote



GO/NOGO Style Thread Ring Gages for the external thread of Female Luer Connector
Video & Pics
The above photo is just representative; not actual product.

ISO 80369-7 Fig B.8 GO/NOGO Chrome Fitment Ring Gages
For fitment testing of the ISO 80369-7 Figure B.8 male screw tabs located on the female conical fitting.
Medi-Luer # ML25 (and ML26)
More information.

Calibration:
The manufacturer's ISO 17025 (A2LA) Calibration Certificate is included.

NOTES:
1. These GO/NOGO Chrome Fitment Ring Gages will test ISO 80369-7 Figure B.8.
2. ISO 80369-7 does not prescribe or define these gages. ISO 80369-7 does not suggests using any gages like this. Using these gages is not a requirement of ISO 80369-7.
3. Usually gages and reference fittings for ISO 80369-7 are made of Hardened Stainless Steel, but these gages are made of Hardened Tool Steel and all-over coated with Chrome to inhibit rust. This gage should not be sterilized.
4. These ML25 GO/NOGO Fitment Ring Gages are supplied with the matching ML26 Master Plug Gages. One set of Master Plug Gages can accommodate many sets of Fitment Ring Gages.


ISO 594/2
Thread Ring Gages

Call or Email us for Quote



GO/NOGO Style Thread Ring Gages for the external thread of Female Luer Connector
Video & Pics
The above photo is just representative; not actual product.

ISO 594/2 GO/NOGO Chrome Fitment Ring Gages
For fitment testing of the ISO 594/2 male screw thread or tabs located on the female conical fitting.
Medi-Luer # ML09 (and ML10)
More Information.

Calibration:
The manufacturer's ISO 17025 (A2LA) Calibration Certificate is included.

NOTES:
1. ISO 594/2 does not prescribe or define this gage and does not suggest using any gage like this. Using this gage is not a requirement of ISO 594/2.
2. Usually gages and reference fittings for ISO 594 are made of Hardened Stainless Steel, but this gage is made of Hardened Tool Steel and all-over coated with Chrome to inhibit rust. This gage should not be sterilized.
3. These ML09 GO/NOGO Fitment Ring Gages are supplied with the matching ML10 Master Plug Gages. One set of Master Plug Gages can accommodate many sets of Fitment Ring Gages.



Lead-Time: 8-10 Weeks after receipt of order to shipment
Payment Terms: Credit Card (Visa, MasterCard, Discover, American Express)
Freight Terms: Freight Collect to your account, FOB: Shipping Point in USA
Pricing and Lead Time is quoted upon request.



Disclaimer:
This data is provided for general information only. The intention is to provide accurate information; regardless; errors may exist in the supplied information. If accuracy is critical, base your final decisions on the data provided in the root documents: ISO594/1; ISO 594/2; ISO80369-7; and ISO80369-20; which are copyrighted documents.
To purchase copies visit an Authorized Reseller.
