ThreadTech™ Screw Thread Engineering Software is a complete and accurate screw thread engineering software program.

ThreadTech™ screw thread engineering software is a powerful screw thread engineering program designed for engineers, quality assurance, planners, and machinist to save time and eliminate human error. The comprehensive screw thread engineering computer program takes the confusion out of screw thread manufacturing and inspection. ThreadTech™ screw thread engineering software eliminates time consuming computations and searches of/for specifications.

ThreadTech™ screw thread engineering software provides screw thread data on: major diameters; pitch diameters; minor diameters; gage data; part data; tap data; helix angles; product tolerances; gauge tolerances; crest and root flats; best wire sizes; thread wire constants; and just about anything on screw threads one needs to know.

ThreadTech Screw Thread Engineering Software uses formulas and rounding off techniques consistent with the latest ANSI and ASME governmental screw thread specifications.

ThreadTech™ screw thread engineering software offers both table values and computed values. The program will alert the user if a dimension is input for plating thickness or size combination that is geometrically impossible or impractical. The 60° degree screw thread information is provided in both inches and millimeters to make double dimensioning for manufacturing and inspection easier. A powerful worm gearing program utilizes both Vogel and Buckingham formulas. ThreadTech™ screw thread engineering software even provides default data in cases where the applicable screw thread specifications do not agree with the calculated tables.

ThreadTech™ screw thread engineering software has a powerful word processor that provides extensive editing, saving, and printing of the screw thread data. Information on several screw thread reports can be generated on the same screen for quick and easy comparison.

ThreadTech™ screw thread engineering software was designed by a leading screw thread gage manufacturer: Osborn Products Inc and has been extensively tested to assure accuracy. Several leading screw thread gauge manufacturers are currently using ThreadTech™ screw thread engineering software to produce screw thread gages for worldwide industries.

ThreadTech v2.24 installs easily in Windows
Network compatible
Multi-User License Agreements (MULA) - call 001.616.954.6581
Free Unlimited Technical Support

Price: $415.00 and usually in stock

Easy to use

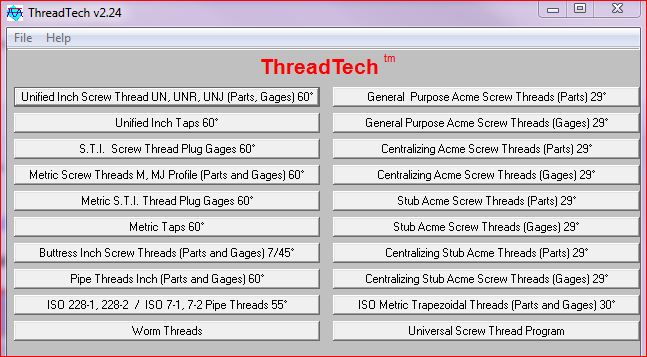

ThreadTech Index Page v2.24

Call us to receive a ThreadTech report for a specific thread that you are working with.

  • Uses latest government and industry specifications
  • 60 degree inch and metric screw threads
  • Acme, Pipe, STI, ISO metric trapezoidal screw threads
  • British & American buttress screw threads
  • M-series, G-series, R-series, Tr-series, J-series screw threads
  • Screw thread work plug gages
  • Screw thread ring gauges, and screw thread setting plug gages
  • Default sizes to agree with specifications
  • All diameters, angles, roots, flats
  • Pitch diameters
  • Minor diameters
  • Helix Angles
  • Worm gearing calculations utilize Buckingham and Vogel Formulas
  • Asymmetrical angle screw threads
  • Screw thread gauge data
  • Part data - internal and external threads
  • Tap Data for inch and metric
  • Product and gage tolerances
  • Crest and root flats
  • Wire sizes and constants
  • Measurement over wires data
  • Standard plating using maximum and minimum, or nominal
  • Anodize plating calculates penetration
  • HAE plating
  • Metric and inch equivalents for double dimensioning
  • Table and computed values
  • Length of engagement
  • Warning alerts and halts for geometrically impossible dimensions and plating thickness


ThreadTech™ v2.24 software complies with the latest revisions of the following standards:

  • Unified 60⁰ Threads Parts: ASME B1.1
  • Unified 60⁰ Threads Gages: ASME B1.2
  • Unified Inc Screw Threads – UNJ : ASME B1.15 / AS8879
  • Metric Threads Parts: ANSI/ASME B1.13M, MJ profile: ANSI B1.21M
  • Metric Threads Parts: ANSI/ASME B1.16M, MJ profile: ANSI B1.22M
  • Acme Screw Threads – general purpose and centralizing – ANSI/ASME B1.5
  • Pipe Threads: ANSI/ASME B1.20.1
  • ANPT Pipe Threads: AS-71051
  • Stub Acme Screw Threads: ASME/ANSI B1.8
  • Buttress Inch Screw Threads: ANSI B1.9
  • British Buttress Threads: BS1657: 1950 R98
  • British Pipe Threads – Parts per ISO 228-1
  • British Pipe Threads – Gages per ISO 228-2
  • British Tapered Pipe Threads – Parts per ISO 7-1
  • British Tapered Pipe Threads – Gages per ISO 7-2
  • DIN Part 3 and Part 9 Trapezoidal threads for parts, ring gages, caliper gages, and plug gages
  • ISO Metric Trapezoidal threads – British: BS5346: 1976
  • STI Thread Plug Gages: A-A-59158
  • Metric STI Thread Plug Gages: Helicoil Bulletin 870E

Thread Tech v2.23 End of support life cycle expires December 31st 2010
